Solar Pump Control
High-efficiency agricultural and large-scale utility solar pump control systems.
Pioneer Technology
Solar Pump
Control Solutions
Teknocrat’s solar pump controllers are one of the firsts in the Indian market, when launched in 2012. Teknocrat’s does not only supply small agriculture applications but also is proud of supplying large solar pump control systems upto 300kW which supplies water to villages in difficult terrain such Arunachal Pradesh & Kargil in Leh Ladakh region of India. MNRE compliant models are also available .
MNRE Compliant
Conforms to standard specifications for national agricultural deployment.
High Capacity Units
Supports systems up to 300kW for tough geographic terrains.

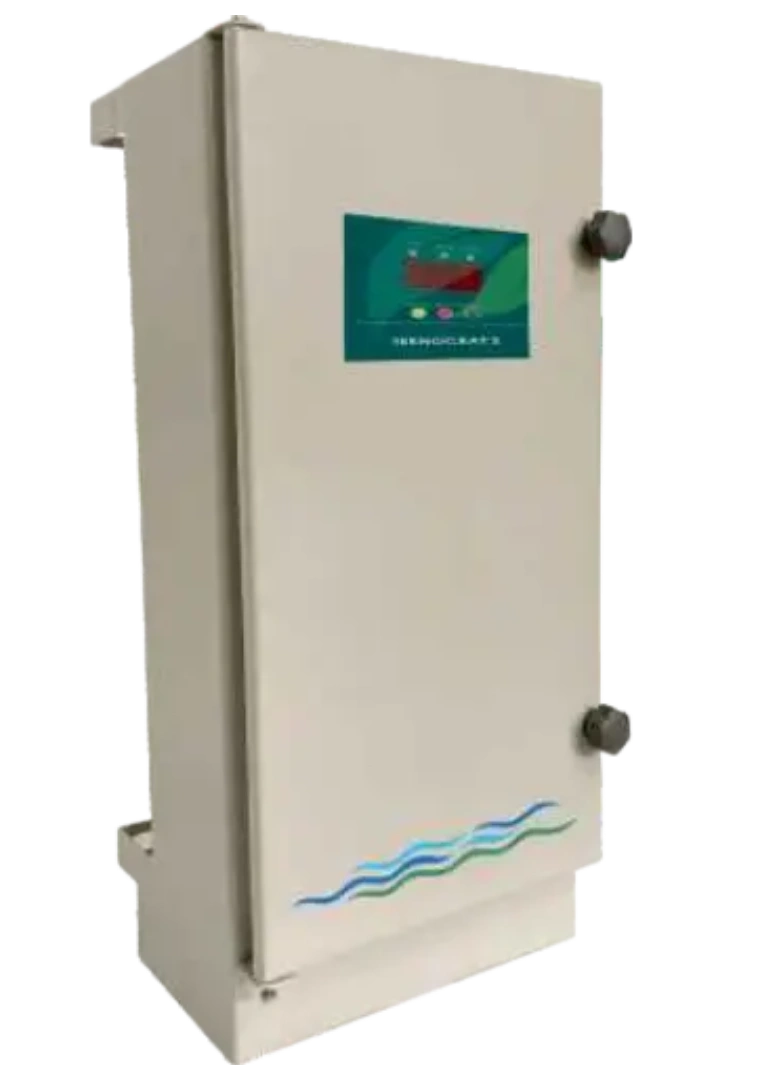

Solar Pump System Control
System Specifications Comparison
Review specifications for Dakshak SLR versus Dakshak SLR RMS systems.
| Feature / specification | Dakshak SLR | Dakshak SLR RMS |
|---|---|---|
| MPPT efficiency | >98% | >98% |
| Ambient temperature range | 20-60 deg. C | 20-60 deg. C |
| Environmental protection class | IP65 | IP65 |
| Inbuilt Protections | Over current, Dry run, Reverse Polarity, Surge protection, Under voltage , Short Circuit | Over current, Dry run, Reverse Polarity, Surge protection, Under voltage , Short Circuit |
| Input DC voltage | 100-800 VDC | 100-800 VDC |
| Special features | Auto start based on solar intensity | Auto start based on solar intensity |
| Display | No display | Running status DC Voltage DC Current Input & output Power Motor voltage & current, Frequency Cumulative water discharge Total water discharge Faults Device Connectivity % Data Availability Latitude & longitude Pump capacity (Hp), SPV module kw. Cumulative solar generation Today run Cumulative run (Logged all data in interval of 10 min.) |
| GPS module | Not included | With <10 m accuracy |
| Communication between RMS & pump controller | Not applicable | UART/RS485 MODBUS RTU protocol |
| External sensor connectivity | Not included | Two analog & 2 digital inputs |
| Analog Input accuracy | Not applicable | 0.1% |
| Communication with external devices | Not applicable | MQTT protocol |
| Remote parameter setting | Not possible | Included |
| LCD display size | Not applicable | 16 Character *2 line LCD |
